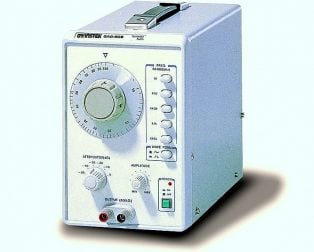

GW Instek GAG 810 Audio Generator

The GW Instek GAG 810 is a precision audio signal generator designed for testing and troubleshooting audio frequency circuits, amplifiers, and acoustic systems with frequencies ranging from 10 Hz to 100 kHz. Audio engineers, electronics technicians, and acoustic researchers rely on this instrument to generate stable, low-distortion sine, square, and triangle waveforms for comprehensive audio equipment validation. This generator solves critical measurement challenges by providing accurate frequency control, adjustable output amplitude, and minimal harmonic distortion essential for professional audio circuit development and quality assurance testing.

Product Overview

The GW Instek GAG 810 Audio Generator operates on the principle of electronic oscillation with precision frequency synthesis, enabling technicians to generate stable test signals across the entire audible spectrum and beyond. The instrument features a dual-channel architecture with independent frequency and amplitude controls, allowing simultaneous testing of multiple audio pathways or comparative analysis between reference and device-under-test signals. The output impedance is precisely matched to standard audio equipment interfaces, ensuring minimal signal reflections and accurate frequency response measurements without loading effects that could compromise test validity.

This model stands out through its combination of analog reliability and user-friendly front-panel controls, making it equally suitable for laboratory environments and field service applications. The GAG 810 incorporates a calibrated output attenuator with 20 dB range adjustment in 1 dB steps, enabling precise amplitude control from millivolt to volt-level outputs without introducing additional noise or distortion artifacts. The frequency dial mechanism provides direct readout with vernier adjustment capability, allowing operators to set exact frequencies within 1% accuracy across the entire operating range, making it indispensable for frequency-dependent audio testing scenarios.

Key Specifications

Specification	Details
Product Type	Audio Frequency Signal Generator
Brand	GW Instek
Model	GAG 810
Origin	Original/Authentic
Warranty	7 days on manufacturing defects
Shipping	1-5 days from Bengaluru
Delivery	7-8 days across India
Support	24/7 via Email and WhatsApp
Frequency Range	10 Hz to 100 kHz
Output Waveforms	Sine, Square, Triangle
Output Impedance	600 Ohms
Maximum Output Voltage	10 V RMS
Frequency Accuracy	±1% across full range
Total Harmonic Distortion	Less than 1% at 1 kHz

Key Features

• Wide Frequency Range: 10 Hz to 100 kHz coverage enables testing of subsonic, audible, and ultrasonic audio applications with single instrument
• Multiple Waveform Generation: Sine, square, and triangle outputs allow comprehensive frequency response and harmonic analysis testing
• Precision Frequency Control: Direct dial with vernier adjustment provides ±1% accuracy for repeatable and traceable measurements
• Adjustable Output Amplitude: 20 dB attenuator with 1 dB steps enables testing across full dynamic range without external padding networks
• Low Distortion Output: Less than 1% THD at 1 kHz ensures clean test signals for accurate amplifier and speaker characterization
• Standard Audio Impedance: 600 Ohm output matches professional audio equipment interfaces for proper signal coupling

Applications and Use Cases

• Amplifier Testing: Verify frequency response, gain linearity, and distortion characteristics of audio amplifiers across full audible spectrum
• Speaker Calibration: Generate swept frequency signals for acoustic impedance measurement and transducer response verification in speaker design
• Audio Filter Validation: Test low-pass, high-pass, and band-pass filter circuits with precise frequency stepping to confirm cutoff frequencies and rolloff rates
• Hearing Aid Development: Generate controlled audio signals for fitting and troubleshooting hearing aid devices across frequency-dependent gain profiles
• Acoustic Measurement: Provide reference signals for sound level meter calibration and room acoustic frequency response analysis
• Service and Repair: Diagnose audio equipment faults by injecting known signals and observing output distortion or frequency-dependent anomalies

How to Use

Begin by connecting the GAG 810 to a stable AC power source and allowing 10 minutes for thermal stabilization of the oscillator circuit, ensuring frequency accuracy within specification. Select your desired waveform using the front-panel selector switch, then use the frequency dial to set your target frequency by rotating the main tuning knob until the desired frequency aligns with the index mark, fine-tuning with the vernier adjustment for precise frequency setting. Connect the output BNC connector to your audio device under test, then adjust the output level control to establish appropriate signal amplitude, typically starting at lower levels and increasing gradually to prevent equipment damage.

For accurate frequency-dependent measurements, allow the instrument to warm up for at least 15 minutes before critical testing, as frequency drift decreases significantly after the initial stabilization period. When measuring frequency response, use the square wave output for harmonic content analysis or sine wave for fundamental frequency response characterization. Always verify output voltage with an external multimeter or oscilloscope when working with sensitive audio circuits, as the front-panel meter provides approximate indication only. For extended testing sessions, monitor the output impedance matching to your load to ensure minimal signal reflections that could introduce standing wave artifacts in your measurements.

Frequently Asked Questions

What is the difference between sine, square, and triangle waveforms on the GAG 810?

Sine wave output provides pure fundamental frequency with minimal harmonic content, ideal for frequency response measurements and amplifier gain testing. Square wave output contains odd harmonics at 3f, 5f, 7f etc., useful for testing harmonic rejection and filter characteristics. Triangle wave output produces even harmonic distribution, valuable for testing nonlinear distortion mechanisms and intermodulation effects in audio circuits.

Can I use the GAG 810 for ultrasonic testing applications?

Yes, the GAG 810 frequency range extends to 100 kHz, enabling ultrasonic testing for applications like ultrasonic cleaner verification, motion sensor calibration, and high-frequency transducer characterization. However, output amplitude decreases at higher frequencies due to cable capacitance effects, so verify actual output voltage at your test frequency with an oscilloscope.

How do I ensure frequency accuracy for critical measurements?

Allow the instrument 15-20 minutes warmup time before critical testing to stabilize the oscillator frequency. Verify the output frequency with an external frequency counter or oscilloscope rather than relying solely on the dial reading. For highest accuracy, use the vernier adjustment to fine-tune frequency after setting the main dial, and perform verification measurements at ambient temperature to account for thermal drift.

Is the GAG 810 suitable for impedance matching with modern audio equipment?

The 600 Ohm output impedance is designed for professional audio standards and will work with most audio amplifiers and measurement equipment. However, for high-impedance inputs above 10 kOhm, you may experience slight signal level reduction. For very low impedance loads below 100 Ohm, use an external buffer amplifier to prevent output voltage drooping.

When will I receive my order?

Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.

What is your return and warranty policy?

We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.

Are bulk discounts available?

Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
