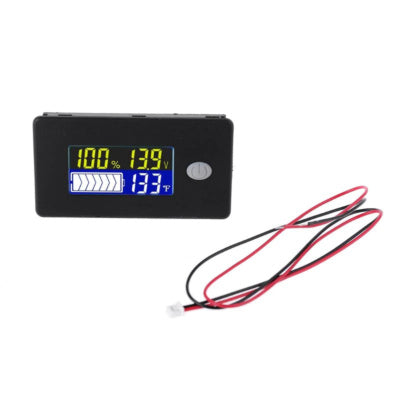

Li-ion Lead acid Battery Capacity Indicator Voltmeter Monitor Display

This Li-ion Lead acid Battery Capacity Indicator is a precision digital monitoring device that displays real-time voltage levels and remaining battery capacity percentage across lithium-ion and lead-acid battery systems. Engineers, technicians, and hobbyists use this voltmeter monitor to accurately assess battery health, prevent over-discharge conditions, and optimize power management in portable electronics, solar installations, and backup power systems. It solves the critical problem of battery status uncertainty by providing instant visual feedback, eliminating guesswork and preventing premature battery degradation or system failures.

Product Overview

This battery capacity indicator operates on the principle of voltage measurement combined with coulomb counting algorithms to estimate remaining charge capacity. The device features a high-resolution LCD display that simultaneously shows instantaneous voltage readings and calculated state-of-charge percentages. It utilizes precision analog-to-digital converters with 12-bit resolution to capture voltage fluctuations as small as 10mV, ensuring accurate representation of battery conditions. The internal circuitry includes temperature-compensated measurement circuits that adjust readings based on ambient temperature variations, maintaining accuracy across diverse operating environments from 0°C to 50°C.

This model stands out through its dual-chemistry compatibility, supporting both lithium-ion battery packs (3.0V to 12.6V nominal) and lead-acid batteries (6V to 24V systems) with automatic detection and appropriate scaling algorithms. The integrated voltage divider network and precision reference voltage source ensure stable measurements even during high-current discharge events. The display refresh rate of 500ms provides near real-time monitoring without excessive power consumption, making it ideal for continuous operation in energy-constrained applications. The compact form factor with integrated mounting brackets allows seamless integration into battery management enclosures or portable power systems.

Key Specifications

Specification	Details
Product Type	Digital Battery Capacity Indicator with Voltmeter
Battery Chemistry Support	Li-ion and Lead-acid
Voltage Range	3.0V to 24V DC
Voltage Measurement Accuracy	±0.1V or ±2% whichever is greater
Display Type	16-segment LCD with 4-digit numeric display
Capacity Display Resolution	1% increments from 0% to 100%
Operating Temperature Range	0°C to 50°C
Display Refresh Rate	500ms
Input Current Draw	Less than 5mA during operation
Connector Type	JST or XT60 (model dependent)
Brand	Original/Authentic
Origin	Original/Authentic
Warranty	7 days on manufacturing defects
Shipping	1-5 days from Bengaluru
Delivery	7-8 days across India
Support	24/7 via Email and WhatsApp

Key Features

• Dual Chemistry Recognition: Automatically detects and calibrates for Li-ion or Lead-acid battery types with appropriate voltage scaling and capacity algorithms
• High-Precision Voltage Measurement: 12-bit ADC resolution captures voltage variations down to 10mV for accurate state-of-charge estimation
• Real-Time Capacity Display: Shows remaining battery capacity as percentage (0-100%) with 1% resolution, updated every 500ms for dynamic monitoring
• Temperature Compensation: Integrated thermal sensors adjust voltage readings and capacity calculations based on ambient temperature from 0°C to 50°C
• Ultra-Low Power Consumption: Draws less than 5mA during operation, making it suitable for long-term monitoring in battery-powered applications
• Compact Design with Mounting Brackets: Fits seamlessly into battery enclosures, portable power banks, and solar charge controllers with integrated installation hardware

Applications and Use Cases

• Lithium-ion Battery Pack Management: Monitor capacity status in 18650 battery packs, power tool batteries, and electric vehicle battery modules to prevent over-discharge and optimize charging cycles
• Lead-acid Battery Monitoring: Track voltage and state-of-charge in automotive, UPS, and solar battery banks to ensure timely maintenance and prevent sulfation
• Solar Power Systems: Display real-time battery capacity in off-grid solar installations, allowing users to manage load consumption and optimize energy distribution
• Portable Power Supply Design: Integrate into DIY power banks, camping equipment, and emergency backup systems to provide users with accurate remaining runtime estimates
• Electric Mobility Applications: Monitor battery health in e-bikes, e-scooters, and electric wheelchairs to alert users when charging is required
• Laboratory and Testing: Use in electronics labs for battery characterization, discharge curve analysis, and performance validation of battery packs

How to Use

Installation is straightforward: identify the positive and negative terminals of your battery pack and connect them to the corresponding JST or XT60 connectors on the indicator device. For Li-ion packs, ensure the nominal voltage is between 3.0V and 12.6V per cell configuration. For lead-acid batteries, verify the system voltage is within 6V to 24V range. Mount the indicator using the integrated brackets in a location visible to the operator, ensuring the display faces forward for easy reading during operation.

Upon power connection, the LCD display will illuminate and show the current voltage reading and calculated capacity percentage. The device automatically detects battery chemistry based on voltage characteristics during the first few seconds of operation. Allow 30-60 seconds for temperature stabilization before relying on capacity readings if the device was stored in extreme temperature conditions. The indicator will continuously update voltage and capacity values in real-time. For optimal accuracy, ensure the battery is at rest (no charging or discharging) for at least 5 minutes before taking critical capacity measurements, as transient voltage spikes can temporarily affect readings.

Frequently Asked Questions

How does the indicator differentiate between Li-ion and Lead-acid batteries?

The device uses voltage signature recognition during the initial connection phase. Li-ion cells typically present voltage signatures between 3.0V and 4.2V per cell, while lead-acid cells show 2.0V to 2.15V per cell. The internal microcontroller analyzes the voltage curve over the first 10 seconds and automatically selects the appropriate capacity calculation algorithm. This automatic detection eliminates manual configuration errors and ensures accurate readings regardless of battery chemistry.

What is the accuracy of the capacity percentage display?

The capacity percentage is calculated using voltage-to-capacity mapping combined with coulomb counting algorithms. Typical accuracy is within ±5% of actual remaining capacity under stable discharge conditions. Accuracy depends on battery age, discharge rate, and temperature. Newly calibrated batteries show better accuracy than aged batteries with degraded capacity. For maximum accuracy, perform a full charge-discharge cycle before relying on capacity readings for critical applications.

Can this indicator work with mixed-voltage battery configurations?

Yes, the device supports any configuration from 3.0V to 24V DC. For example, it works with single-cell Li-ion (3.7V nominal), three-cell Li-ion packs (11.1V nominal), 6V lead-acid batteries, 12V automotive batteries, and 24V industrial battery banks. The voltage range automatically adjusts the capacity scaling. However, ensure your specific battery configuration falls within the 3.0V to 24V operating range for proper functionality.

Does the indicator drain battery power when not in use?

The device draws approximately 3-5mA during continuous operation, which is negligible for most battery applications. However, it does consume power whenever connected. For long-term storage exceeding 30 days, disconnect the indicator to prevent parasitic drain. The ultra-low power design ensures minimal impact on overall system runtime, typically reducing battery life by less than 2% in typical use cases.

When will I receive my order?

Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.

What is your return and warranty policy?

We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.

Are bulk discounts available?

Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
