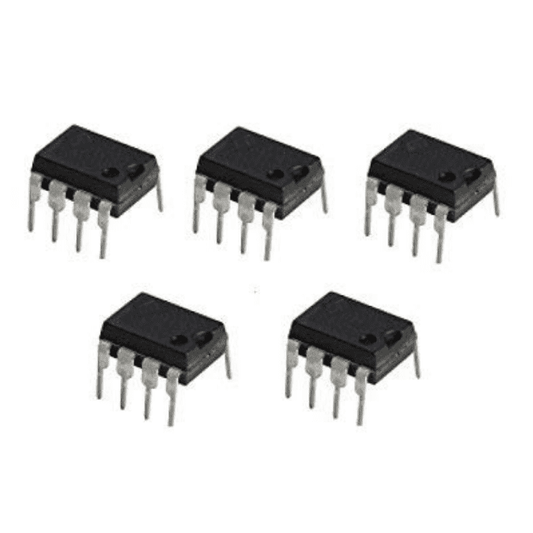

LM 741 Op-Amp IC (Pack of 5)
The LM741 is the industry-standard general-purpose operational amplifier, trusted by engineers, students, and hobbyists worldwide for decades. This pack of 5 ICs in the classic 8-pin DIP package gives you reliable, versatile analog signal processing for amplification, filtering, signal conditioning, and mathematical operations. Sourced from trusted manufacturers and available from The Engineer Store, Bengaluru, with fast shipping and full technical support.
Specifications
| IC Part Number | LM741 / UA741 |
| Type | General-Purpose Operational Amplifier |
| Package | 8-Pin DIP (Dual Inline Package) |
| Quantity | 5 ICs per pack |
| Supply Voltage Range | +/-5V to +/-18V (Single: 10V to 36V) |
| Input Offset Voltage | 1 mV (typical), 5 mV (max) |
| Input Bias Current | 80 nA (typical) |
| Open-Loop Voltage Gain | 200,000 (106 dB typical) |
| Unity-Gain Bandwidth | 1 MHz |
| Slew Rate | 0.5 V/us |
| Output Short-Circuit Current | 25 mA |
| Input Impedance | 2 MOhm (typical) |
| CMRR (Common-Mode Rejection Ratio) | 90 dB (typical) |
| PSRR (Power Supply Rejection Ratio) | 96 dB (typical) |
| Operating Temperature Range | 0 degreesC to +70 degreesC (commercial grade) |
| Output Voltage Swing | +/-12V to +/-14V (with +/-15V supply) |
| Offset Null Pins | Pins 1 & 5 (with external potentiometer) |
| Internal Compensation | Yes (frequency compensated internally) |
| Origin | Original / Authentic from authorized suppliers |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Pin Configuration (8-Pin DIP)
| Pin 1 | Offset Null 1 |
| Pin 2 | Inverting Input () |
| Pin 3 | Non-Inverting Input (+) |
| Pin 4 | V (Negative Supply / GND) |
| Pin 5 | Offset Null 2 |
| Pin 6 | Output |
| Pin 7 | V+ (Positive Supply) |
| Pin 8 | No Connection (NC) |
Key Features
- Internally Frequency Compensated: No external compensation capacitors needed - simplifies circuit design and reduces component count.
- High Open-Loop Gain: 200,000 (106 dB) typical gain enables precise signal amplification with minimal error when configured with feedback.
- Wide Supply Voltage Range: Operates from +/-5V to +/-18V, making it compatible with a broad range of power supply configurations.
- Built-In Short-Circuit Protection: Output is protected against accidental shorts, improving reliability during prototyping and testing.
- Offset Null Adjustment Pins: Dedicated pins (1 & 5) allow fine-tuning of input offset voltage using a simple potentiometer for precision applications.
- High CMRR (90 dB): Excellent common-mode noise rejection for clean differential signal processing.
- Breadboard-Friendly DIP Package: Standard 8-pin DIP fits directly into breadboards, perfboards, and through-hole PCBs without adapters.
- Latch-Up Free Operation: Stable operation even when input common-mode range is exceeded - no destructive latch-up.
- Universal Availability: Extensively documented with thousands of application notes, tutorials, and reference designs available.
- Pack of 5: Multiple ICs for multi-stage circuits, spares for experimentation, or classroom use.
Why Choose This?
- 100% Authentic Components: Sourced directly from authorized distributors - no counterfeits or remarked parts.
- Industry-Standard IC: The LM741 is the most widely taught and used op-amp in electronics education and prototyping worldwide.
- Proven Reliability: Billions of units manufactured over 50+ years with
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy LM 741 Op-Amp IC (Pack of 5) Online in India
Purchase the LM 741 Op-Amp IC (Pack of 5) online at The Engineer Store - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on LM 741 Op-Amp IC (Pack of 5) with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy LM 741 Op-Amp IC (Pack of 5) at the best price in India? The Engineer Store offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
