25% off

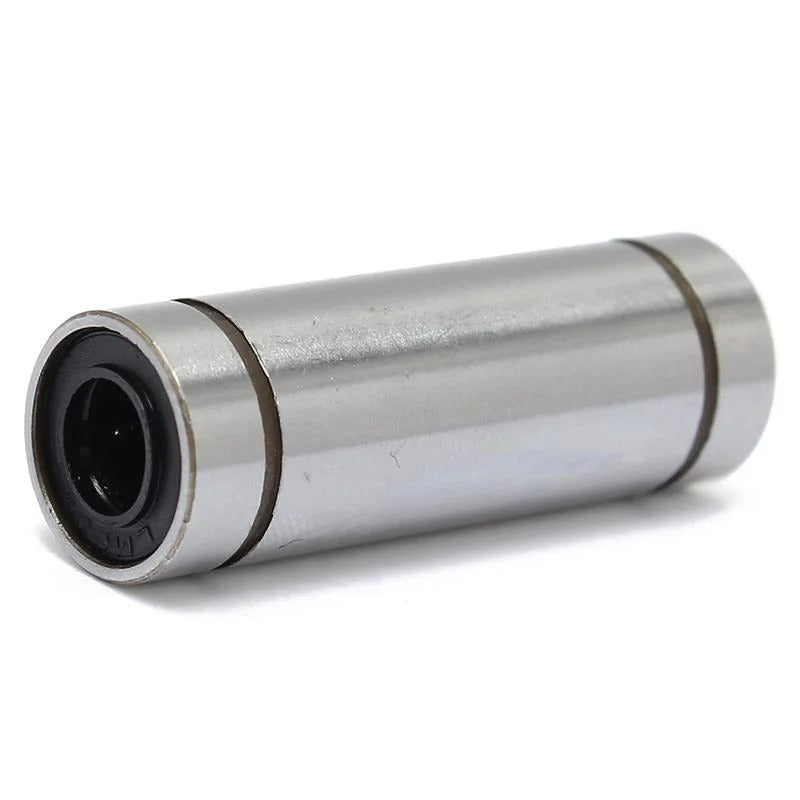

LM8UU Long Type 8mm Linear Ball Bearing
High-precision long-type linear ball bearing designed for smooth, low-friction linear motion on 8mm shafts. Ideal for 3D printers, CNC machines, and precision motion systems. Available from The Engineer Store, Bengaluru with fast shipping and dedicated support.
Specifications
| Model | LM8UU (Long Type) |
| Type | Linear Ball Bearing / Linear Bush |
| Inner Diameter (Bore) | 8mm |
| Outer Diameter | 15mm |
| Length | 45mm (extended long type) |
| Shaft Compatibility | 8mm hardened & ground linear shafts |
| Ball Rows | Multiple recirculating rows |
| Material (Outer Casing) | Carbon steel with anti-corrosion plating |
| Ball Material | Chrome steel (GCr15) |
| Retainer / Cage | Nylon resin |
| Seal Type | Rubber seals on both ends |
| Dynamic Load Rating | ~294N (30 kgf) |
| Static Load Rating | ~196N (20 kgf) |
| Motion Type | Linear (recirculating ball) |
| Lubrication | Pre-lubricated with light grease |
| Operating Temperature | -20 degreesC to +80 degreesC |
| Tolerance | Standard clearance fit on 8mm shaft |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Extended Length Design: At 45mm long (vs 24mm standard LM8UU), provides greater contact area for improved stability, reduced wobble, and higher load capacity along the shaft
- Smooth Recirculating Ball System: Multiple rows of precision chrome steel balls recirculate through internal tracks, delivering ultra-low friction linear motion
- Pre-Lubricated & Sealed: Dual rubber seals on both ends retain grease and block dust and debris, extending service life with minimal maintenance
- Precision Ground Bore: Tight tolerance 8mm inner bore ensures accurate, play-free sliding on standard 8mm hardened linear rods
- Corrosion-Resistant Housing: Plated carbon steel outer casing resists rust and wear for long-term reliable operation
- Drop-In Replacement: Standard 8x15x45mm dimensions make it a direct upgrade or replacement in existing LM8LUU mounting brackets and housings
Why Choose the Long Type Over Standard LM8UU?
- Greater Stability: Nearly double the length of a standard LM8UU (24mm), dramatically reducing angular play and tilting on the shaft
- Higher Load Capacity: More ball contact points distribute loads evenly, supporting heavier carriages and toolheads
- Smoother Travel: Extended bearing surface minimizes vibration and micro-wobble, critical for print quality and machining precision
- Fewer Bearings Needed: One long-type bearing can often replace two standard bearings, simplifying assembly and alignment
Why Choose This Product?
- 100% authentic from trusted mechanical component suppliers
- 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse across India
- Expert technical support for motion system design and troubleshooting
- Precision-inspected for smooth operation right out of the box
- Compatible with all standard 8mm linear shafts and LM8LUU mounting brackets
Project Ideas
- 3D Printer Builds & Upgrades: Essential for X, Y, and Z axis carriages on popular printers like Prusa i3, Anet A8, and custom CoreXY builds. The long type reduces layer artifacts caused by bearing wobble.
- CNC Router & Engraver: Provides stable linear guidance for gantry and spindle carriages on DIY CNC machines cutting wood, acrylic, and soft metals.
- Laser Cutter/Engraver Motion Systems: Ensures precise, jitter-free movement of the laser head for clean cuts and detailed engravings.
- Automated Sliding Mechanisms: Build motorized camera sliders, automated drawer systems, or robotic linear actuators with smooth, repeatable travel.
- Pick-and-Place Machines: Use on linear rail axes for precise component placement in electronics assembly or sorting systems.
- Laboratory & Test Equipment: Integrate into precision positioning stages, sample handlers, or automated measurement rigs requiring low-friction linear motion.
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
