14% off

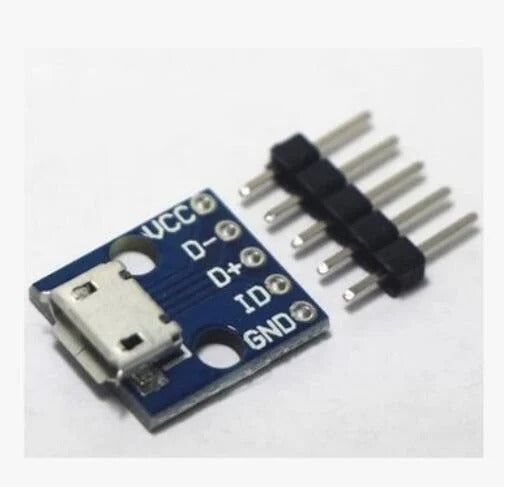

Micro USB Breakout Board Power Charging Module
A compact and versatile Micro USB breakout board designed for easy power delivery and charging integration in your electronics projects. This module breaks out the standard Micro USB connector pins to breadboard-friendly header pins, giving you convenient access to VBUS (5V), GND, D+, D, and ID lines for prototyping, power supply circuits, and USB communication experiments.
Specifications
| Connector Type | Micro USB Type-B Female |
| Output Voltage | 5V DC (from USB source) |
| Breakout Pins | VBUS, D, D+, ID, GND |
| Pin Pitch | 2.54mm (standard breadboard compatible) |
| Max Current Rating | Up to 1A (depending on USB source) |
| PCB Material | FR4 with lead-free HASL finish |
| Board Dimensions | Approx. 25mm x 15mm |
| Mounting | Breadboard plug-in / soldered header pins |
| Operating Temperature | 25 degreesC to +85 degreesC |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Full Pin Breakout: Access all five Micro USB pins - VBUS, D, D+, ID, and GND - through clearly labeled 2.54mm header connections.
- Breadboard Friendly: Standard pitch header pins plug directly into solderless breadboards for rapid prototyping without custom wiring.
- Stable 5V Power Source: Use any standard Micro USB cable and phone charger to deliver regulated 5V DC power to your circuits.
- Compact Form Factor: Ultra-small PCB footprint takes minimal space on your breadboard or inside enclosures.
- The Engineer Store Connector: SMD-mounted Micro USB socket with reinforced solder tabs for reliable mechanical and electrical connection.
- Data Line Access: D+ and D pins available for USB data communication experiments, not just power delivery.
- Lead-Free Manufacturing: RoHS-compliant PCB and solder for environmentally responsible prototyping.
Why Choose This Micro USB Breakout Board?
- 100% authentic from trusted component suppliers
- Eliminates messy cable splicing - clean, professional 5V power tap for any project
- Works with billions of existing Micro USB cables and chargers worldwide
- Ideal replacement for bulky barrel jack connectors in space-constrained designs
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse
- Expert technical support included with every purchase
Project Ideas
- Arduino & Microcontroller Power Supply: Power your Arduino Nano, ESP8266, ESP32, or ATtiny projects directly from a phone charger through this breakout board - no need for a separate DC adapter.
- DIY LiPo Battery Charger: Combine with a TP4056 charging IC to build a compact lithium-ion/polymer battery charging station with clean USB power input.
- Portable LED Lighting: Create USB-powered LED strips, desk lamps, or decorative lighting projects with easy power connectivity.
- Sensor Data Logger: Use the 5V rail to power sensors and the data lines to communicate readings to a computer via USB serial.
- Raspberry Pi & SBC Projects: Prototype custom power delivery boards or USB accessory interfaces for single-board computers.
- Wearable Electronics: Integrate into wearable prototypes where a Micro USB port provides both charging and programming access.
- Learning & Education: Teach students about USB pinouts, power delivery, voltage regulation, and digital communication protocols hands-on.
- IoT Device Prototyping: Add a standard charging/power port to custom IoT enclosures for smart home sensors, weather stations, and connected devices.
How to Use
- Insert into Breadboard: Push the header pins into your solderless breadboard. Ensure all pins are seated firmly.
- Connect Your Circuit: Wire the VBUS pin to your circuit's positive rail and the GND pin to the ground rail. Use D+ and D only if USB data communication is needed.
- Plug in Micro USB Cable: Connect a standard Micro USB cable from any USB power source - phone charger, power bank, or computer USB port.
- Verify Power: Use a multimeter to confirm approximately 5V across VBUS and GND before connecting sensitive components.
- Build Your Project: With stable 5V power available, add your microcontroller, sensors, LEDs, or any other components to complete your circuit.
What's in the Box
- 1 x Micro USB Breakout
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy Micro USB Breakout Board Power Charging Module Online in India
Purchase the Micro USB Breakout Board Power Charging Module online at The Engineer Store - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on Micro USB Breakout Board Power Charging Module with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy Micro USB Breakout Board Power Charging Module at the best price in India? The Engineer Store offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
