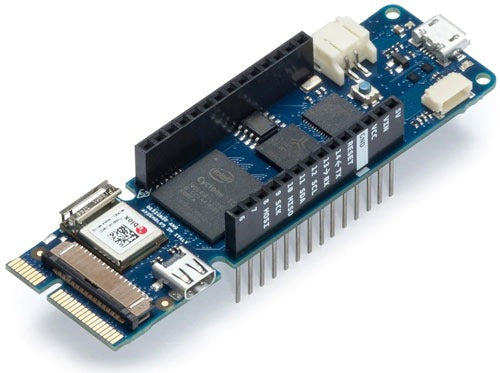

MKR Vidor 4000 - Arduino FPGA + Wi-Fi + BLE Development Board
Unleash the power of FPGA-based hardware acceleration combined with Arduino simplicity. The MKR Vidor 4000 from The Engineer Store, Bengaluru is the world's first Arduino board built around an Intel Cyclone 10 FPGA, offering reconfigurable hardware for real-time video processing, audio analysis, motor control, and high-speed I/O - all programmable through the familiar Arduino IDE. Fast shipping across India with 7-day warranty on manufacturing defects and dedicated technical support.
Specifications
| Board | Arduino MKR Vidor 4000 |
| Main Processor | SAMD21 Cortex-M0+ 32-bit ARM (48 MHz) |
| FPGA | Intel Cyclone 10CL016 - 16,000 Logic Elements |
| Wi-Fi | u-blox NINA-W102 (802.11 b/g/n, 2.4 GHz) |
| Bluetooth | BLE via NINA-W102 module |
| Flash Memory | 2 MB (SAMD21) + 8 MB SRAM (FPGA) + 2 MB QSPI Flash |
| Camera Connector | MIPI camera interface (compatible with OV2640 & similar) |
| Video Output | Micro HDMI connector (FPGA-driven) |
| Digital I/O Pins | 22 (8 PWM capable) |
| Analog Input Pins | 7 (8/10/12-bit ADC) |
| Analog Output Pins | 1 (10-bit DAC) |
| Communication | UART, SPI, I2C, I2S |
| USB | Micro USB (programming & power) |
| Operating Voltage | 3.3V |
| Input Voltage | 5V (USB) / 5V (VIN pin) |
| Battery Connector | Li-Po single-cell 3.7V (JST connector, onboard charging) |
| Board Dimensions | 61.5 mm x 25 mm (MKR form factor) |
| Weight | ~32 g |
| Form Factor | Arduino MKR standard |
| Programming | Arduino IDE, Arduino Create, Quartus Prime (FPGA) |
| Crypto Chip | ATECC508A (hardware-based secure authentication) |
| Origin | 100% Original Arduino (Authentic, Authorized) |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp Technical Support 24/7 |
Why Choose the MKR Vidor 4000?
- First Arduino with FPGA: Intel Cyclone 10CL016 with 16,000 logic elements lets you create custom hardware peripherals, hardware-accelerated signal processing, and parallel computation - all reconfigurable on the fly
- Real-Time Video & HDMI Output: Built-in MIPI camera connector and Micro HDMI output enable computer vision, live video streaming, and display applications directly from the FPGA fabric
- Wi-Fi + BLE Connectivity: u-blox NINA-W102 module provides robust 2.4 GHz Wi-Fi and Bluetooth Low Energy for IoT, cloud connectivity, and wireless control
- Arduino Simplicity Meets FPGA Power: Program the ARM Cortex-M0+ using the standard Arduino IDE while leveraging pre-built FPGA IP blocks - no Verilog expertise required for basic use
- Hardware Crypto Security: Onboard ATECC508A crypto chip enables secure TLS/SSL communication, device authentication, and encrypted data storage for production-grade IoT
- MKR Ecosystem Compatible: Plug in any MKR Shield - GPS, ENV, Motor Carrier, Ethernet, CAN, RS-485, RGB, IMU - for instant expansion without wiring
- Battery-Powered & Portable: Integrated Li-Po charging circuit and JST battery connector for untethered, portable, and wearable deployments
- 100% Authentic Arduino: Sourced directly from authorized distributors with full manufacturer backing and verified authenticity
- Fast 1-5 days shipping: Ships from our Bengaluru warehouse; same-day delivery available within Bengaluru
- Expert Technical Support: Dedicated engineering support via email and WhatsApp to help you with FPGA configuration, IP block integration, and project development
Key FPGA Capabilities
- Custom Peripheral Creation: Synthesize additional UARTs, SPI
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy MKR Vidor 4000 Online in India
Purchase the MKR Vidor 4000 online at The Engineer Store - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on MKR Vidor 4000 with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy MKR Vidor 4000 at the best price in India? The Engineer Store offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
