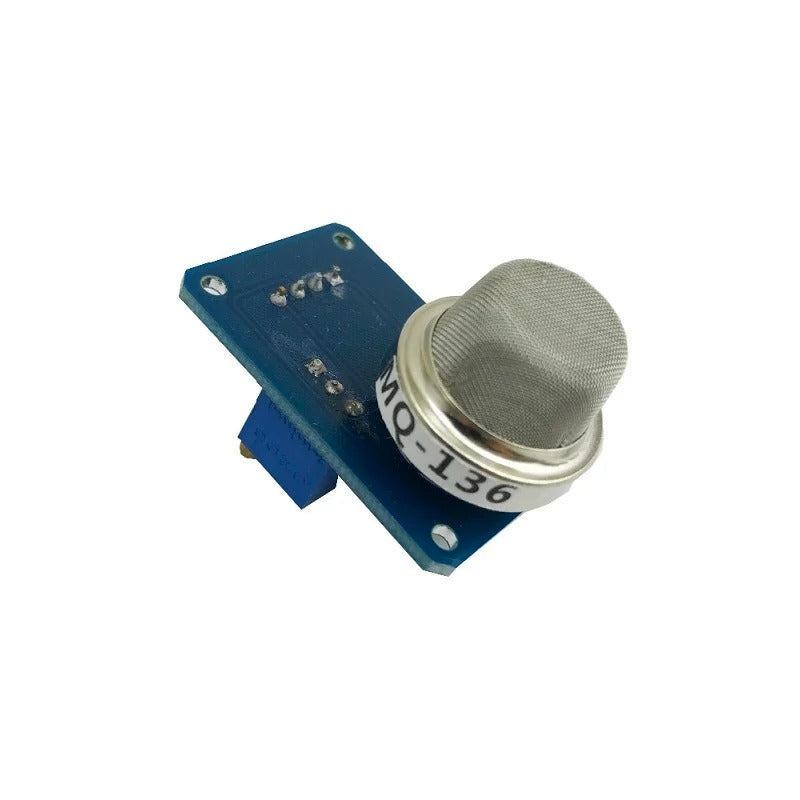

MQ 136 hydrogen gas sensor
The MQ 136 is a semiconductor-based hydrogen gas sensor that detects H2 concentrations in the air with high sensitivity and fast response time, making it ideal for safety monitoring and gas detection applications. Professional engineers and technicians use this sensor in industrial safety systems, hydrogen leak detection, fuel cell monitoring, and environmental control applications where precise hydrogen measurement is critical. This sensor solves the problem of undetected hydrogen leaks in industrial facilities, laboratories, and hydrogen storage systems by providing real-time alerts when dangerous H2 concentrations are reached.
Product Overview
The MQ 136 operates on the principle of metal oxide semiconductor (MOS) sensing technology, where a tin dioxide (SnO2) sensing element changes its electrical resistance in the presence of hydrogen gas. The sensor contains a heating element that maintains the sensing element at an optimal operating temperature of approximately 200°C, ensuring consistent and reliable detection across varying ambient conditions. The output is an analog voltage signal that varies proportionally with hydrogen concentration, allowing microcontroller integration for real-time monitoring and alarm triggering systems.
What distinguishes the MQ 136 is its exceptional sensitivity to hydrogen gas with minimal cross-sensitivity to other gases, making it highly suitable for dedicated H2 detection applications. The sensor features a compact cylindrical design with six pins for easy integration into PCB circuits, operates on a 5V DC power supply with low current consumption, and provides a rapid response time of less than 10 seconds. Its robust construction and long operational lifespan of 5+ years make it a cost-effective solution for continuous hydrogen monitoring in industrial, automotive, and renewable energy applications.
Key Specifications
| Specification | Details |
| Product Type | Semiconductor Metal Oxide Gas Sensor |
| Brand | MQ Series (Winsen Electronics) |
| Origin | Original/Authentic |
| Warranty | 7 days on manufacturing defects |
| Shipping | 1-5 days from Bengaluru |
| Delivery | 7-8 days across India |
| Support | 24/7 via Email and WhatsApp |
| Sensing Element | Tin Dioxide (SnO2) |
| Operating Voltage | 5V DC |
| Heating Element Voltage | 5V AC or DC |
| Detection Range | 1-1000 ppm (parts per million) |
| Response Time | Less than 10 seconds |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Sensor Operating Temperature | Approximately 200°C |
| Pin Configuration | 6-pin ceramic tube package |
| Output Type | Analog voltage signal |
| Lifespan | 5+ years under normal operating conditions |
Key Features
- High Sensitivity to Hydrogen: Detects hydrogen concentrations from 1-1000 ppm with excellent selectivity and minimal interference from other gases
- Fast Response Time: Achieves 90% response within 10 seconds, enabling rapid detection of hydrogen leaks and safety alerts
- Low Power Consumption: Operates efficiently on 5V DC supply with optimized current draw, suitable for battery-powered and IoT applications
- Robust Construction: Ceramic tube housing with durable metal oxide sensing element ensures long operational lifespan of 5+ years
- Easy Integration: Standard 6-pin configuration compatible with microcontroller platforms like Arduino, Raspberry Pi, and industrial PLC systems
- Analog Output Signal: Linear voltage output proportional to gas concentration enables straightforward calibration and signal processing
- Stable Performance: Heating element maintains consistent sensor temperature for reliable readings across varying ambient conditions
Applications and Use Cases
- Industrial Hydrogen Leak Detection: Monitors hydrogen storage tanks, pipelines, and industrial processes to prevent dangerous gas accumulation in confined spaces
- Fuel Cell Vehicle Safety Systems: Detects hydrogen leaks in fuel cell electric vehicles (FCEVs) and hydrogen refueling stations to ensure passenger and technician safety
- Laboratory Gas Monitoring: Used in research facilities and chemical laboratories for continuous hydrogen detection during experiments and synthesis processes
- Renewable Energy Applications: Monitors hydrogen production systems, electrolyzers, and hydrogen storage facilities in green energy infrastructure
- HVAC and Building Safety: Integrated into ventilation systems and safety monitoring networks to detect hydrogen accumulation in commercial and residential buildings
- Aerospace and Aviation: Detects hydrogen leaks in aircraft fuel systems and ground support equipment where hydrogen is used as a propellant or fuel source
How to Use
To set up the MQ 136 hydrogen gas sensor, first identify the six pins on the ceramic tube: the heating element pins (H), signal output pins (A and B), and ground pins (GND). Connect the heating element to a 5V DC power supply through a current-limiting resistor (typically 10-20 ohms), and connect the signal output pin to an analog input pin on your microcontroller. Allow the sensor to warm up for 24-48 hours before taking measurements to achieve stable baseline readings, as the sensing element requires thermal stabilization for accurate hydrogen detection.
For accurate hydrogen measurement, you must calibrate the sensor by exposing it to known hydrogen concentrations and recording the corresponding analog voltage outputs. Create a calibration curve by testing at multiple concentration levels (e.g., 10 ppm, 100 ppm, 500 ppm), then use this curve to convert raw sensor readings into actual hydrogen concentrations. Implement software filtering and averaging algorithms in your microcontroller code to smooth out noise and false readings. Set alarm thresholds based on your safety requirements (typically 4% hydrogen concentration is considered the lower explosive limit) and trigger alerts or shutdown procedures when hydrogen levels exceed these thresholds.
Frequently Asked Questions
What is the difference between MQ 136 and other MQ series hydrogen sensors?
The MQ 136 is specifically optimized for hydrogen gas detection with superior selectivity compared to general-purpose sensors like the MQ 2 or MQ 4. While the MQ 2 detects multiple combustible gases (methane, propane, butane), the MQ 136 provides dedicated hydrogen monitoring with minimal cross-sensitivity to other gases, making it ideal for hydrogen-specific applications like fuel cell systems and hydrogen storage facilities.
How long does the sensor take to warm up and stabilize?
The MQ 136 requires 24-48 hours of continuous operation to achieve stable baseline readings and accurate hydrogen detection. During the first few hours, the sensor output may fluctuate as the tin dioxide sensing element reaches thermal equilibrium. We recommend running the sensor continuously for at least 48 hours before deploying it in critical safety applications to ensure reliable performance.
Can the MQ 136 detect hydrogen in humid environments?
Yes, the MQ 136 can operate in humid environments, but humidity levels above 95% relative humidity may slightly affect sensor accuracy and response time. If your application involves high humidity, consider adding a desiccant cartridge or humidity control mechanism near the sensor to maintain optimal operating conditions. The sensor's operating humidity range is typically 30-90% RH for best performance.
What is the expected lifespan of the MQ 136 sensor?
Under normal operating conditions with proper calibration and maintenance, the MQ 136 has an expected lifespan of 5+ years. However, lifespan can be reduced if the sensor is exposed to corrosive gases, extreme temperatures, or contaminated air. Regular calibration checks every 6-12 months help ensure continued accuracy and allow early detection of sensor degradation.
How do I calibrate the MQ 136 for accurate hydrogen measurement?
Calibration involves exposing the sensor to known hydrogen concentrations and recording the analog voltage outputs. Use a gas mixing system or hydrogen calibration gas bottles (available in 10 ppm, 100 ppm, and 500 ppm concentrations) to create reference points. Plot these values to create a calibration curve, then use this curve in your microcontroller software to convert raw analog readings into actual hydrogen concentrations in ppm.
When will I receive my order?
Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.
What is your return and warranty policy?
We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
Why Buy from The Engineer Store
- Genuine Products: Sourced directly from authorized distributors with authentication
- Expert Team: Our technical team validates every product before listing
- Fast Shipping: Dispatched within 1-5 days from our Bengaluru warehouse
- Pan-India Delivery: 7-8 days to Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata
- Payment Options: COD, UPI, credit/debit cards, net banking, EMI available
- Technical Support: 24/7 expert guidance via email and WhatsApp
- Returns: 7-day return policy on manufacturing defects only
Buy MQ 136 hydrogen gas sensor Online in India
Purchase the MQ 136 hydrogen gas sensor online at The Engineer Store, India's trusted source for genuine electronics. We deliver across Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on MQ 136 hydrogen gas sensor with fast shipping and expert support.
Our team in Bengaluru is available 24/7 to support your journey from product selection to project completion.
