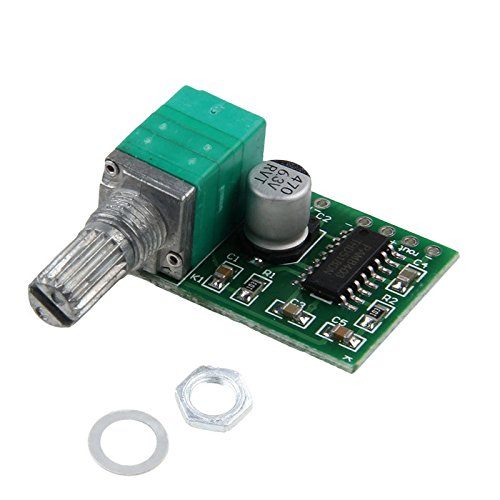

PAM 8403 Amplifier Module with Knob
Compact, high-efficiency Class-D stereo amplifier module powered by the PAM8403 IC, featuring an onboard potentiometer knob for convenient volume control. Delivers crisp 2x3W audio output from a 5V USB-compatible power supply - ideal for portable speakers, DIY audio projects, and embedded sound systems. Available at The Engineer Store, Bengaluru with fast shipping and full technical support.
Specifications
| Amplifier IC | PAM8403 Class-D Stereo Audio Amplifier |
| Output Power | 2 x 3W (4Ohm load, 5V supply) |
| Operating Voltage | 2.5V - 5.5V DC (5V recommended) |
| Audio Channels | 2 (Stereo - Left & Right) |
| THD+N (Total Harmonic Distortion) | <= 0.1% at 1kHz, 1W output |
| SNR (Signal-to-Noise Ratio) | >= 80dB |
| Efficiency | Up to 90% (Class-D switching topology) |
| Volume Control | Onboard rotary potentiometer knob |
| Audio Input | 3.5mm stereo AUX / solder pads (L, R, GND) |
| Speaker Output | Screw terminals / solder pads for Left & Right speakers |
| Recommended Speaker Impedance | 4Ohm - 8Ohm |
| Quiescent Current | ~10mA (low standby power consumption) |
| Board Dimensions | Approx. 30mm x 25mm x 12mm (compact form factor) |
| Mounting | PCB mounting holes for secure installation |
| Operating Temperature | -40 degreesC to +85 degreesC |
| Features | Filterless output, short-circuit protection, thermal shutdown |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Class-D Efficiency: Up to 90% power efficiency means minimal heat generation, eliminating the need for bulky heatsinks and making it perfect for battery-powered projects.
- Integrated Volume Knob: Onboard potentiometer provides smooth, hands-on volume adjustment without requiring external controls or software.
- USB-Compatible 5V Operation: Runs directly from USB power banks, phone chargers, Arduino 5V pins, or any standard 5V DC source for maximum versatility.
- True Stereo Output: Dual-channel amplification drives two separate speakers for genuine left/right stereo sound separation.
- Filterless Design: PAM8403's filterless architecture reduces external component count, board size, and overall system cost.
- Built-In Protection: Thermal shutdown and short-circuit protection safeguard both the module and your speakers from damage.
- Ultra-Compact Footprint: Tiny PCB fits inside portable speaker enclosures, small robots, wearable devices, and tight project housings.
- Plug-and-Play Simplicity: Just connect power, audio input, and speakers - no additional driver circuits, capacitors, or configuration needed.
Why Choose The PAM 8403 Amplifier Module with Knob?
- 100% authentic modules sourced directly from trusted, authorized component suppliers
- Tested and quality-checked at our Bengaluru warehouse before dispatch
- 1-5 day shipping, 7-8 day delivery across India; same-day delivery available in Bengaluru
- Expert technical support to help with wiring, integration, and troubleshooting
- Unbeatable price-to-performance ratio for audio amplification projects
Project Ideas
- DIY Portable Bluetooth Speaker: Pair with a Bluetooth audio receiver module (e.g., HC-05 or dedicated BT board), two 4Ohm/8Ohm speakers, and a USB power bank to build a fully wireless portable speaker system with volume control.
- Arduino/Raspberry Pi Sound System: Connect to the audio output of a Raspberry Pi, ESP32 with I2S DAC, or Arduino with DFPlayer Mini to add amplified sound to interactive projects, voice assistants, or notification systems.
- Desktop PC/Laptop Mini Speakers: Build a compact, custom stereo speaker set powered directly from a USB port - perfect for workstations where space is limited.
- Robot Voice & Sound Effects: Integrate into robotics projects to amplify pre-recorded voice prompts, alert tones, or music for interactive robots and smart devices.
- Intercom or PA System Prototype: Use as the amplification stage in a small-scale intercom, classroom announcement system, or doorbell speaker module.
- Guitar Practice Amp
