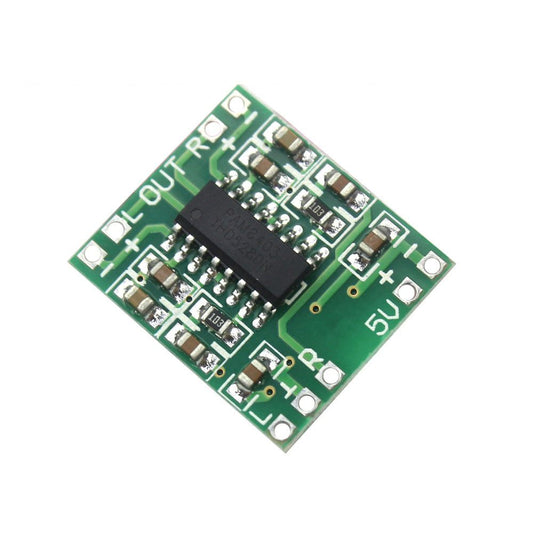

PAM8403 Digital Power Amplifier
Compact, efficient Class-D stereo audio amplifier module from The Engineer Store, Bengaluru. Delivering 2x3W output from a tiny board, the PAM8403 is the go-to amplifier for portable speakers, DIY audio projects, and embedded sound systems. Fast shipping, 7-day warranty on manufacturing defects, and dedicated support.
Specifications
| Amplifier IC | PAM8403 (Class-D) |
| Output Power | 2 x 3W (into 4Ohm, 5V supply) |
| Channels | Stereo (Left + Right) |
| Supply Voltage | 2.5V - 5.5V DC |
| Efficiency | Up to 90% (Class-D switching) |
| THD+N | < 0.1% at 1kHz, 1W output |
| SNR | > 80 dB |
| Speaker Impedance | 4Ohm - 8Ohm recommended |
| Audio Input | 3.5mm stereo or solder pads (L, R, GND) |
| Quiescent Current | ~10mA (very low standby draw) |
| Board Size | Approx. 30mm x 20mm |
| Onboard Features | Volume potentiometer, power indicator LED |
| No Heat Sink Required | Filterless Class-D design runs cool |
| Origin | Original/Authentic IC |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Why Choose the PAM8403 Amplifier?
- Incredible efficiency: Class-D topology delivers up to 90% power efficiency - ideal for battery-powered projects with minimal heat generation
- True stereo output: Dual-channel 3W+3W drives two speakers independently for immersive left/right audio separation
- Ultra-compact footprint: Tiny 30x20mm board fits inside portable speakers, robots, wearable devices, and tight enclosures
- USB-powered simplicity: Runs directly from 5V USB, power banks, Arduino 5V pins, or 3xAA batteries - no bulky power supply needed
- Onboard volume control: Built-in potentiometer for easy analog volume adjustment without additional circuitry
- Low noise floor: SNR above 80dB and THD below 0.1% ensures clean, distortion-free audio at moderate listening levels
- No external filter components: Filterless output design reduces BOM cost and simplifies wiring to speakers
- Plug-and-play connectivity: Feed audio from smartphones, MP3 modules, Bluetooth receivers, Raspberry Pi, or any 3.5mm line-level source
- 100% authentic PAM8403 IC sourced from trusted suppliers - consistent performance guaranteed
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse with same-day dispatch available
Project Ideas
- Portable Bluetooth Speaker: Pair with a Bluetooth audio receiver module (like KCX_BT) and two 4Ohm speakers to build a rechargeable wireless speaker powered by a single 18650 cell or USB power bank
- Raspberry Pi Media Center: Add high-quality stereo sound to your Pi-based media player, retro gaming console, or smart mirror - connect directly to the 3.5mm audio jack
- Arduino Talking Projects: Combine with a DFPlayer Mini MP3 module to add voice prompts, alarms, sound effects, or music playback to interactive Arduino projects
- Desktop PC/Laptop Speaker: Build a compact powered speaker set for your workstation - plug into the headphone jack and power via USB port
- Robot Voice & Sound Effects: Give your robot audible feedback - play navigation alerts, greeting messages, or obstacle warnings through onboard speakers
- Intercom & PA System: Use with a microphone preamplifier for a simple one-way announcement or intercom system in workshops or classrooms
- Guitar Practice Amp: Build a tiny battery-powered practice amplifier for electric guitar or ukulele pickup - great weekend DIY project
- IoT Doorbell / Alert System: Integrate with ESP32 or NodeMCU to play custom notification tones triggered by motion sensors, doorbells, or MQTT messages
- Educational Audio Experiments: Teach students about Class-D amplification, PWM audio, signal-to-noise ratio, and speaker impedance matching hands-on
Wiring Guide
| PAM8403 Pin | Connection |
| VCC (+) | 5V DC ( |
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
