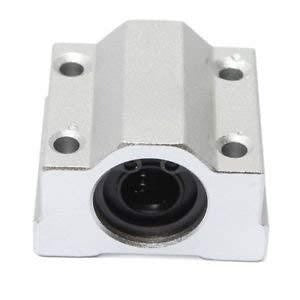

SC16UU Linear Bearing (16 mm)
High-quality SC16UU linear bearing block with 16 mm bore diameter, featuring a precision SCS housing for smooth, low-friction linear motion. Available from The Engineer Store, Bengaluru. Fast shipping, 7-day warranty on manufacturing defects, and dedicated support.
Specifications
| Type | Linear Ball Bearing with Pillow Block Housing |
| Model | SC16UU (SCS16UU) |
| Bore Diameter (Inner) | 16 mm |
| Outer Diameter | 28 mm |
| Housing Dimensions (L x W x H) | 44 x 42 x 38 mm (approx.) |
| Mounting Bolt Spacing | 34 mm x 22 mm |
| Bearing Type | Closed / Double-sealed Linear Ball Bearing |
| Housing Material | Aluminium Alloy |
| Bearing Material | Chrome Steel (GCr15) |
| Seal Type | Rubber Seals (Dust-proof) |
| Compatible Shaft Diameter | 16 mm Hardened & Ground Linear Rod |
| Dynamic Load Rating | ~1,100 N |
| Static Load Rating | ~1,760 N |
| Motion Type | Smooth Linear Sliding |
| Lubrication | Pre-lubricated (Grease) |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Precision 16 mm Bore: Engineered for a snug, rattle-free fit on standard 16 mm hardened linear shafts.
- Integrated Pillow Block Housing: Aluminium alloy SCS housing with pre-drilled mounting holes for quick, rigid installation on flat surfaces.
- Low-Friction Ball Recirculation: Internal steel ball circuits deliver smooth, consistent linear travel with minimal resistance.
- Dust-Sealed Design: Rubber seals on both ends keep out debris and retain lubrication for extended service life.
- Pre-Lubricated & Maintenance-Friendly: Ships greased and ready to install; easy to re-lubricate for long-term use.
- High Load Capacity: Chrome steel bearing construction handles substantial radial loads for robust mechanical assemblies.
- Self-Aligning Tolerance: Minor housing play compensates for slight shaft misalignment, reducing binding and wear.
Why Choose This?
- 100% authentic from trusted mechanical component suppliers
- Ideal upgrade over bushings - delivers true rolling-element linear motion
- Drop-in compatible with standard 16 mm linear rail systems and shafts
- 1-5 day shipping, 7-8 day delivery from Bengaluru warehouse across India
- Expert technical support for motion system design and installation
Project Ideas
- CNC Machines & Routers: Use as the primary linear motion element on X, Y, or Z axes for precise, repeatable tool positioning on medium to large CNC builds.
- 3D Printer Upgrades: Upgrade larger-format 3D printers (e.g., custom CoreXY or bed-slinger designs) with 16 mm shafts and SC16UU bearings for improved rigidity and print quality.
- Laser Cutter & Engraver Gantries: Build smooth-gliding gantry systems for CO2 or diode laser cutters with accurate, wobble-free motion.
- Linear Actuator Assemblies: Combine with lead screws or belt drives to create custom linear actuators for automation, robotics, or pick-and-place systems.
- Camera Sliders & Motion Rigs: Construct professional-grade camera slider rails for cinematic video production with buttery-smooth travel.
- Industrial Automation & Jigs: Integrate into factory fixtures, sliding platforms, packaging machines, or testing rigs requiring reliable guided linear motion.
- Educational & Lab Equipment: Ideal for engineering students building motion platforms, vibration test beds, or mechanical demonstration setups.
What's in the Box
- 1 x SC16UU Linear Bearing Block (bearing pre-installed in aluminium housing)
- Documentation and support materials
Installation Tips
- Use only hardened and precision-ground 16 mm shafts (h6 tolerance recommended) for optimal performance and bearing life.
- Ensure parallel alignment of dual-shaft setups to prevent binding - use a dial indicator or alignment jig during mounting.
- Secure the housing with M5 bolts through the four mounting holes
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
