Stroke Length 500MM 7mmS 1000N DC12V Electric Putter Electric Linear Actuator p
by
My Store
SKU: TES-EV2289
```html

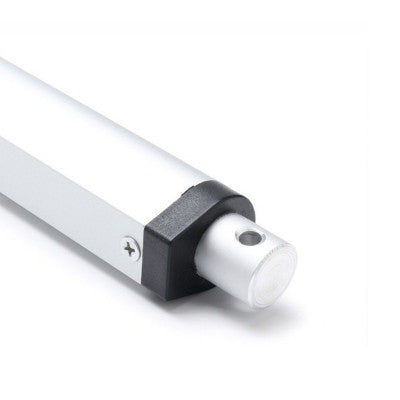

Stroke Length 500MM 7mm/s 1000N DC 12V Electric Linear Actuator
High-force, precision-controlled electric linear actuator from The Engineer Store, Bengaluru. Delivers 1000N (100 kg) of push/pull force with a full 500 mm stroke at a steady 7 mm/s speed - ideal for automation, robotics, furniture, solar trackers, and industrial motion systems. Fast shipping, 7-day warranty on manufacturing defects, and dedicated technical support.
Specifications
| Type | DC Electric Linear Actuator (Electric Putter) |
| Input Voltage | DC 12V |
| Stroke Length | 500 mm (19.7 in) |
| Rated Speed | 7 mm/s (no load) |
| Maximum Force (Push/Pull) | 1000N (100 kg / 225 lbs) |
| Duty Cycle | 20% (recommended intermittent use) |
| Motor Type | Brushed DC with built-in gearbox |
| Noise Level | <= 50 dB |
| Protection Rating | IP54 (dust & splash resistant) |
| Mounting | Rear clevis + front clevis bracket (standard pin-mount holes) |
| Retracted Length | Approx. 510 mm (varies by model batch) |
| Extended Length | Approx. 1010 mm |
| Built-in Limit Switches | Yes - auto-stop at full extension & retraction |
| Operating Temperature | -26 degreesC to +65 degreesC |
| Material | Aluminum alloy outer tube, hardened steel inner rod |
| Wire Lead Length | Approx. 300 mm with standard 2-pin connector |
| Weight | Approx. 3.5 - 4.0 kg |
| Origin | Original / Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- 1000N High Force Output: Pushes or pulls loads up to approximately 100 kg, making it suitable for heavy-duty lifting, tilting, and positioning tasks.
- 500 mm Full Stroke: Long travel range provides ample linear motion for large panels, hatches, adjustable furniture, and agricultural equipment.
- Smooth 7 mm/s Travel Speed: Controlled, steady movement prevents jerking - critical for precision alignment and delicate mechanical assemblies.
- DC 12V Operation: Runs directly from standard 12V batteries, automotive power, solar charge controllers, or bench power supplies - no special high-voltage wiring needed.
- Built-in Limit Switches: Automatically cuts motor power at both ends of travel, protecting the actuator from over-extension or over-retraction damage.
- Quiet Operation (<= 50 dB): Low-noise gearbox design allows use in living spaces, offices, medical environments, and recording studios.
- IP54 Dust & Splash Resistance: Sealed housing withstands workshop dust, light rain, and outdoor humidity for semi-outdoor installations.
- Durable Construction: Aluminum alloy outer tube resists corrosion; hardened steel inner rod handles repeated load cycles without bending or wear.
- Simple Polarity-Reverse Control: Swap the two power wires to reverse direction - easily controlled via DPDT switch, relay module, H-bridge, or microcontroller.
- Universal Clevis Mounting: Standard rear and front mounting brackets with pin holes allow quick installation on frames, plates, and custom rigs.
Why Choose This Linear Actuator?
- 100% Authentic: Sourced directly from trusted, authorized component suppliers - no clones or under-spec imitations.
- Powerful Yet Compact: Delivers industrial-grade force in a form factor that fits DIY builds, prototypes, and production machines alike.
- Easy Integration: Works with Arduino, Raspberry Pi, PLC systems, relay boards, RF remote kits, and simple manual switches - no proprietary controllers required.
- 1-5 days shipping: Ships from our Bengaluru warehouse to most locations across India; same-day dispatch available in Bengaluru city.
- Expert Technical Support: Our engineering team helps you with wiring diagrams, load calculations, and controller recommendations via email and WhatsApp around the clock.
- Reliable Warranty: Full 7-day warranty on manufacturing defects covers internal motor defects, gearbox failures, and limit switch malfunctions.
How It Works
Inside the actuator, a DC motor drives a lead screw through a reduction gearbox. When 12V is applied, the motor spins the lead sc
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy Stroke Length 500MM 7mmS 1000N DC12V Electric Putter Electric Linear Actuator p Online in India
Purchase the Stroke Length 500MM 7mmS 1000N DC12V Electric Putter Electric Linear Actuator p online at The Engineer Store - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on Stroke Length 500MM 7mmS 1000N DC12V Electric Putter Electric Linear Actuator p with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy Stroke Length 500MM 7mmS 1000N DC12V Electric Putter Electric Linear Actuator p at the best price in India? The Engineer Store offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
