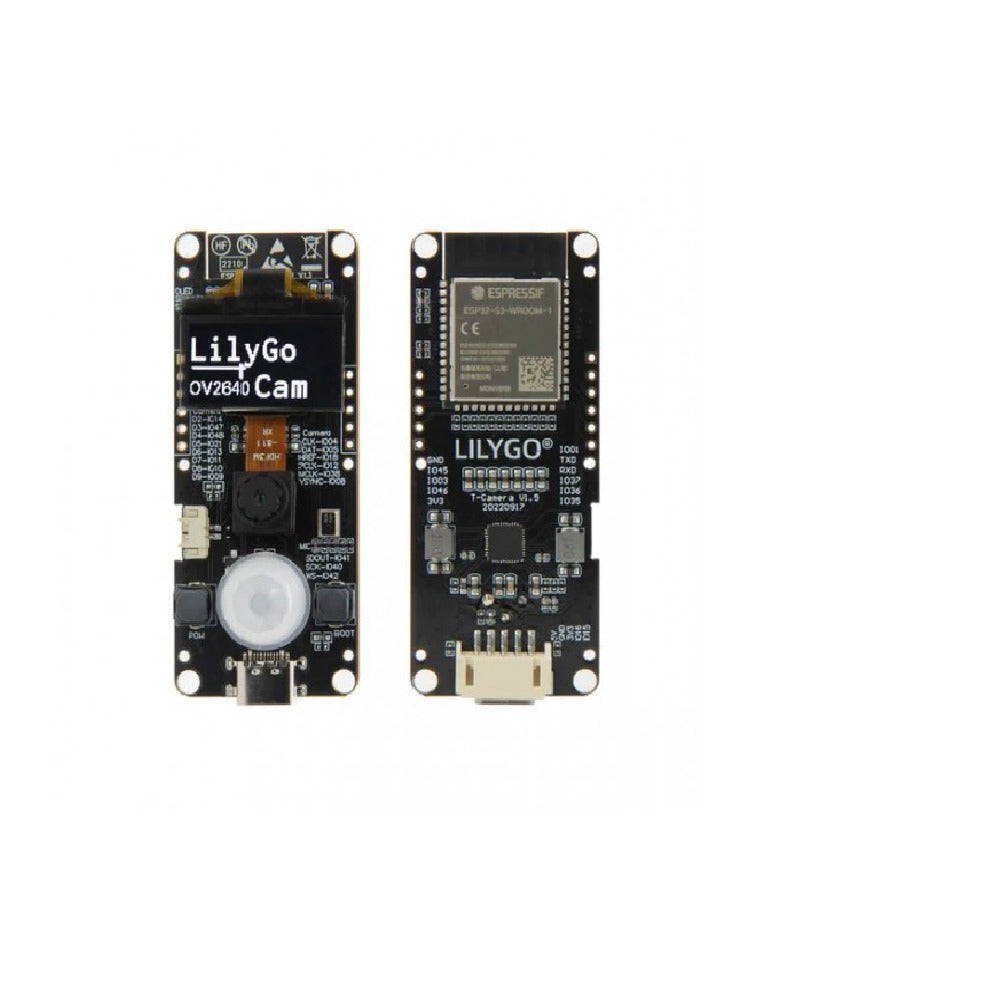

TTGO_T_Camera_ESP32_WROVER_

The TTGO T-Camera ESP32-WROVER is a compact embedded camera module that integrates a dual-core ESP32 microcontroller with 4MB PSRAM and OV2640 camera sensor for real-time image capture and wireless transmission. IoT developers, robotics engineers, and embedded systems professionals use this module to build intelligent vision applications including remote surveillance systems, autonomous robots, wildlife monitoring devices, and smart home automation projects. It solves the critical challenge of adding affordable, low-power computer vision capabilities to wireless IoT platforms without requiring external processing units or complex integration.

Product Overview

The TTGO T-Camera operates on a dual-core Tensilica LX6 processor running at 240MHz with integrated WiFi (802.11 b/g/n) and Bluetooth 4.2 connectivity, enabling seamless data transmission over standard networks. The OV2640 CMOS image sensor delivers 2-megapixel resolution with configurable output formats (JPEG, YUV, RGB565), while the 4MB PSRAM provides sufficient buffer for image processing and temporary data storage. The module features a built-in microSD card slot for local image storage, USB-C programming interface, and integrated lithium battery charging circuit, making it a complete standalone solution for portable vision applications.

What distinguishes this model is its exceptional power efficiency and compact form factor measuring just 65x30x20mm, combined with the ESP32-WROVER's superior RAM configuration compared to standard ESP32 variants. The WROVER variant includes 8MB external SPI flash and 4MB PSRAM, enabling complex image processing algorithms, face detection libraries, and TensorFlow Lite model inference directly on the device. The integrated camera interface operates at up to 40MHz clock frequency, supporting real-time video streaming at 30fps in QVGA resolution or higher quality still captures at full 2MP resolution.

Key Specifications

Specification	Details
Product Type	Embedded Camera Module with Microcontroller
Brand	TTGO (LilyGO)
Origin	Original/Authentic
Warranty	7 days on manufacturing defects
Shipping	1-5 days from Bengaluru
Delivery	7-8 days across India
Support	24/7 via Email and WhatsApp
Processor	Dual-core Tensilica LX6 ESP32 at 240MHz
RAM	520KB SRAM + 4MB PSRAM
Flash Memory	8MB SPI Flash
Camera Sensor	OV2640 CMOS, 2-megapixel resolution
Wireless Connectivity	WiFi 802.11 b/g/n, Bluetooth 4.2 LE
Power Supply	5V USB-C or 3.7V lithium battery with charging circuit
Operating Temperature	-40°C to 85°C
Dimensions	65mm x 30mm x 20mm

Key Features

• Integrated OV2640 2MP camera with JPEG compression support, enabling efficient wireless transmission of high-quality images without overwhelming network bandwidth
• 4MB PSRAM provides sufficient buffer for real-time image processing, edge AI inference, and complex algorithm execution directly on the microcontroller
• Dual-core 240MHz processor with WiFi and Bluetooth connectivity enables simultaneous image capture, processing, and wireless data transmission without performance bottlenecks
• MicroSD card slot with SDIO support for local persistent storage of captured images and video logs, critical for surveillance and monitoring applications
• USB-C interface with integrated FTDI serial converter for programming and real-time debugging via Arduino IDE or PlatformIO
• Built-in lithium battery charging circuit with power management, supporting portable and remote deployment scenarios without external power infrastructure

Applications and Use Cases

• Remote surveillance and security monitoring systems where the WiFi connectivity enables real-time video streaming to cloud servers or mobile applications for instant alerts
• Autonomous robotics and drone projects requiring onboard vision processing for obstacle detection, line following, and autonomous navigation without external computing units
• Wildlife and environmental monitoring stations deployed in remote locations where the battery operation and microSD storage enable weeks of autonomous operation
• Smart home automation and IoT projects including doorbell cameras, pet monitoring, plant health imaging, and occupancy detection with edge AI processing
• Industrial inspection and quality control applications where the camera captures product images for defect detection using TensorFlow Lite models running locally on the ESP32
• Educational robotics and embedded systems courses where students learn computer vision, IoT protocols, and real-time processing on resource-constrained devices

How to Use

Begin by connecting the TTGO T-Camera to your computer via USB-C cable and installing the ESP32 board package in Arduino IDE by adding the LilyGO board manager URL to preferences. The module comes pre-loaded with bootloader firmware, allowing immediate programming using Arduino sketches or MicroPython. Initialize the OV2640 camera using the ESP32 camera driver library, configure WiFi credentials for network connectivity, and implement image capture routines using the camera frame buffer API. The PSRAM is automatically available for heap allocation, enabling you to store full resolution images in memory before compression or transmission.

For image streaming applications, configure the camera to output JPEG format which provides 10:1 compression ratio, reducing data transmission from 6MB per frame to approximately 600KB. Implement WiFi socket connections to transmit frames to a remote server or mobile application, or store images locally to the microSD card using the SDIO interface. Power the device from either the USB-C connector during development or the integrated lithium battery for portable deployment. The battery management system automatically handles charging when USB power is connected, and the device operates for 4-8 hours on a full charge depending on WiFi usage and camera frame rate.

Frequently Asked Questions

What is the maximum frame rate for video streaming?

The OV2640 sensor supports up to 30fps at QVGA resolution (320x240) or 15fps at VGA resolution (640x480) when streaming over WiFi. The dual-core processor handles simultaneous JPEG compression and WiFi transmission without frame drops. For higher frame rates, reduce resolution or implement frame skipping in your application code. The actual achievable frame rate depends on WiFi bandwidth and server processing speed.

Can I run TensorFlow Lite models on this device?

Yes, the 4MB PSRAM and 240MHz dual-core processor support TensorFlow Lite Micro for running quantized neural networks for tasks like face detection, object recognition, and pose estimation. Models must be compiled for ESP32 architecture and quantized to int8 format to fit within flash memory constraints. The PSRAM provides temporary buffer space for model inference. Performance is suitable for real-time processing at 1-5fps depending on model complexity and input resolution.

What image formats does the OV2640 sensor support?

The OV2640 supports JPEG (compressed), YUV422, YUV420, RGB565, and RGB444 output formats. JPEG format is recommended for wireless transmission due to 10:1 compression ratio. Raw YUV formats are useful for image processing algorithms requiring pixel-level access. You can switch between formats in real-time by reconfiguring the sensor registers through the I2C interface in your firmware.

How do I store images on the microSD card?

The microSD card connects via the SDIO interface and appears as a standard file system. Use the Arduino SD library or ESP-IDF FATFS driver to open, write, and close image files. Capture frames to the camera buffer, compress to JPEG format, and write the binary data to a file with timestamped filename. The microSD card supports up to 32GB capacity, enabling storage of thousands of high-resolution images for offline analysis.

What is the power consumption during operation?

Active power consumption is approximately 200-300mA when WiFi is enabled and camera is streaming, and 100-150mA for WiFi-only operation without camera. The device enters deep sleep mode consuming only 10-20uA, useful for battery-powered applications with periodic wake-up intervals. The integrated lithium battery typically provides 4-8 hours of continuous streaming operation depending on WiFi signal strength and frame rate.

When will I receive my order?

Orders are dispatched within 1-5 business days from our Bengaluru warehouse. Delivery takes 7-8 days to most locations across India.

What is your return and warranty policy?

We offer a 7-day return policy on manufacturing defects only. Contact support within 7 days of receipt for free replacement or full refund. Not applicable for user damage or misuse.

Are bulk discounts available?

Yes, wholesale pricing for orders of 10 or more units. Contact our sales team via WhatsApp or email for a customized bulk quote.
