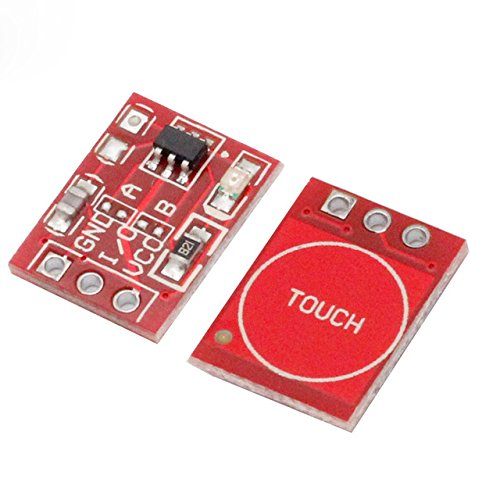

TTP223 Touch Switch Module
Add elegant, button-free touch control to your projects with the TTP223 Touch Switch Module. Based on the TTP223 capacitive touch sensor IC, this compact module detects finger touch through a sensing pad and outputs a clean digital HIGH/LOW signal - replacing mechanical buttons with a sleek, modern interface. Available now at The Engineer Store, Bengaluru, with fast shipping and full technical support.
Specifications
| Sensor IC | TTP223 Capacitive Touch Detector |
| Operating Voltage | 2.0V - 5.5V DC |
| Output Type | Digital (HIGH/LOW), Toggle or Momentary (configurable) |
| Output Mode (Default) | Momentary (active HIGH on touch) |
| Response Time | ~60ms (touch) / ~220ms (release) |
| Quiescent Current | ~1.5uA (ultra-low standby power) |
| Operating Current | ~3uA at 3V |
| Interface Pins | VCC, GND, SIG (3-pin header) |
| Module Dimensions | ~11mm x 10mm (compact form factor) |
| Operating Temperature | -20 degreesC to +70 degreesC |
| Configurable Options | Solder jumpers A & B for toggle/momentary and active HIGH/LOW selection |
| Type | Capacitive Touch Sensor Module |
| Origin | Original/Authentic |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Capacitive Touch Detection: Senses finger touch through the onboard pad - no mechanical pressure needed, eliminating switch wear and bounce issues.
- Wide Voltage Range (2.0V-5.5V): Directly compatible with 3.3V and 5V microcontrollers including Arduino, ESP32, ESP8266, STM32, and Raspberry Pi GPIO.
- Ultra-Low Power Consumption: Only ~1.5uA in standby, making it ideal for battery-powered and energy-harvesting applications.
- Configurable Output Modes: Use onboard solder jumpers to switch between momentary (default) and toggle modes, and between active-HIGH and active-LOW output.
- Fast Response: 60ms touch response and 220ms release time for snappy, reliable interaction.
- Tiny Footprint: At just ~11x10mm, it fits into the tightest enclosures and PCB layouts.
- Simple 3-Pin Interface: VCC, GND, and SIG - connect and read with a single digitalRead() call. No libraries or complex protocols required.
- Clean Digital Output: No debouncing code needed - the IC handles signal conditioning internally.
Why Choose This?
- 100% authentic TTP223 modules sourced from trusted suppliers
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse across India
- Expert technical support for wiring, coding, and integration
- Perfect replacement for mechanical push buttons in any project
- Proven reliability across thousands of maker and industrial projects
How It Works
The TTP223 IC continuously monitors the capacitance of the onboard touch pad. When a finger approaches or touches the pad, the change in capacitance is detected and the module outputs a digital signal on the SIG pin. In the default momentary mode, the output goes HIGH while the pad is touched and returns LOW when released. In toggle mode (enabled via solder jumper), each touch alternates the output between HIGH and LOW - perfect for on/off switching applications. The module requires no external components and self-calibrates on power-up.
Wiring Guide
| Module Pin | Arduino / MCU Pin |
| VCC | 3.3V or 5V |
| GND | GND |
| SIG | Any Digital Input (e.g., D2) |
Tip: Allow ~0.5 seconds after power-up for the TTP223 to auto-calibrate. Avoid touching the pad during this calibration window.
Project Ideas
- Touch-Activated LED Lamp: Build a stylish desk lamp that turns on/off with a simple touch - use toggle mode for latching control and PWM for brightness levels.
- Smart Home Touch Panel: Arrange multiple TTP223 modules behind an acrylic or glass panel to create a custom touch interface for controlling lights, fans, and appliances via relays.
- Interactive Museum/Exhibit Display: Let visitors touch pads to trigger audio, video, or lighting effects - no moving parts to wear out.
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy TTP223 Touch Switch Module Online in India
Purchase the TTP223 Touch Switch Module online at The Engineer Store - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on TTP223 Touch Switch Module with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy TTP223 Touch Switch Module at the best price in India? The Engineer Store offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
