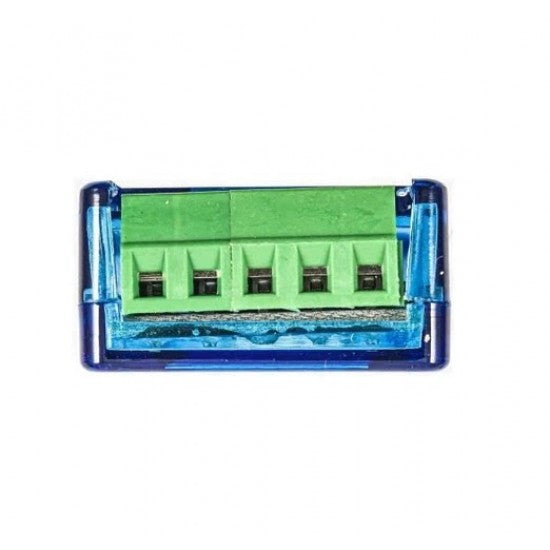

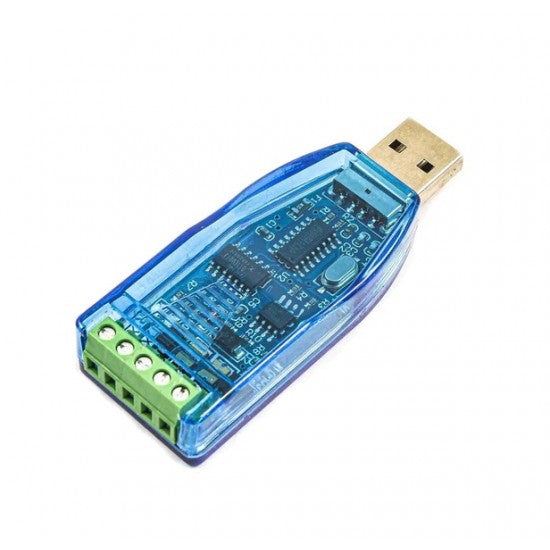

USB to RS232/485 Converter Module - CH340 Chip Based

The USB to RS232/485 Converter, equipped with the state-of-the-art CH340 chip for unparalleled performance and reliability. This converter seamlessly bridges the gap between modern USB interfaces and traditional RS232/485 serial communication, catering to a diverse range of devices with its versatile functionality.

The CH340 chip at the core of our converter module delivers exceptional performance and compatibility. With robust signal conversion capabilities, it facilitates smooth communication between USB-enabled devices and RS232/485 interfaces, ensuring reliable data transmission even in demanding industrial environments. Plus, with plug-and-play functionality, installation is quick and effortless, saving you valuable time and resources.

Features

• USB to RS232/485 Converter with CH340 chip technology
• Plug-and-play installation for quick setup and hassle-free connectivity
• Fully compliant with USB 2.0 standard, compatible with USB1.1

• Robust signal conversion for reliable data transmission

• Compact and durable design for industrial applications
• Compatible with a wide range of operating systems
• Extended temperature range from -40°C to +85°

Specifications

• Power supply : USB 5V
• Transmission distance : 1200m(under 9600bps conditions)
• Chip scheme : CH340
• Communication protocol : pure hardware device,not limited by protocol
• Baud rate : 921600bps,supporting mutual transmission supports higher baud rate
• Protection : TVS transient suppression protection,electrostatic ESD protection,surge protection,AB signal line short connection and short connection protection with power supply(short connection without burning)
• Temperature range : -40℃-80℃
• Provide 5V power supply externally,with fuse current limiting
• Support system : support hot plugging,support win98/CE/2000/2003/2008/XP/WIN7 /WIN8/WIN10/VISTA/LINUX/MAC OS X system,USB interface can be hot-swapped
• Automatic identification and control of data transmission direction,without any handshake signal(such as RTS,DTR,etc.)without jumper setting can achieve mode conversion,to ensure compliance with existing communication software and interface hardware

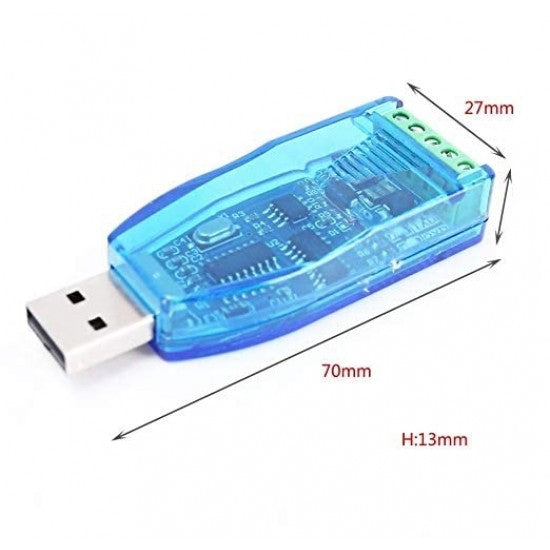

• Dimensions : 70*27*13mm


Package Includes

• 1x USB to RS232/485 Module
