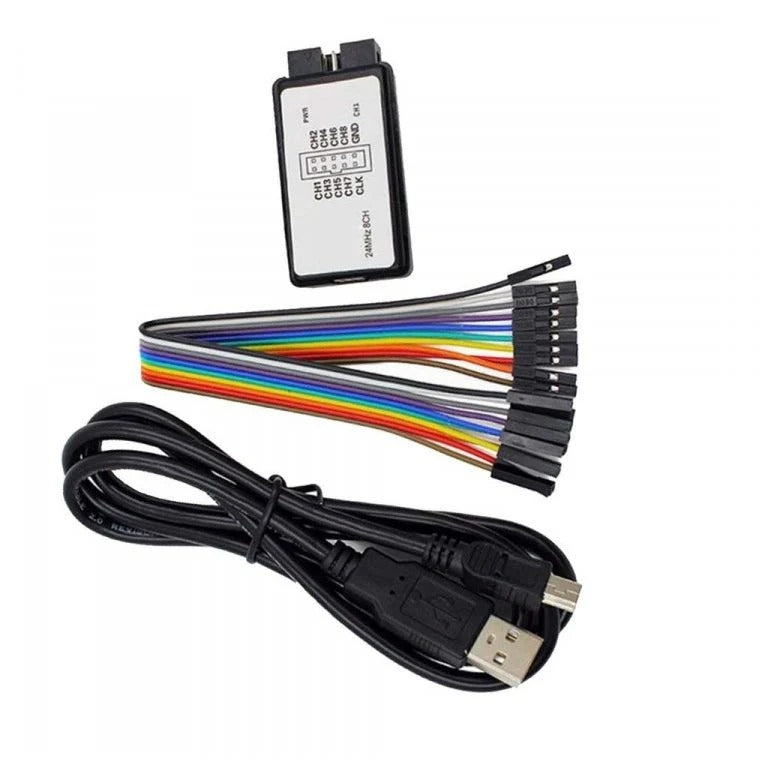

USB Logic Analyzer - 24 MHz, 8-Channel Microcontroller Debugger
Decode, debug, and analyze digital signals with precision using this compact USB Logic Analyzer featuring 24 MHz sampling and 8 simultaneous channels. An essential bench tool from The Engineer Store, Bengaluru - ideal for embedded developers, hobbyists, and electronics students working with microcontrollers, serial buses, and digital protocols. Fast shipping across India with 7-day warranty on manufacturing defects and dedicated technical support.
Specifications
| Product Type | USB Logic Analyzer |
| Maximum Sampling Rate | 24 MHz |
| Number of Channels | 8 Channels (simultaneous capture) |
| Interface | USB 2.0 (bus-powered, no external supply needed) |
| Input Voltage Range | 0 - 5.25 V (5 V tolerant, 3.3 V / 5 V logic compatible) |
| Logic Threshold | ~1.2 V (adjustable in software) |
| Input Impedance | >= 100 kOhm (minimal loading on target circuit) |
| Buffer Depth | Limited by host PC RAM (stream-to-PC architecture) |
| Supported Protocols | UART, SPI, I2C, 1-Wire, JTAG, CAN, I2S, SDIO, and more |
| Software Compatibility | Saleae Logic (clone-compatible), sigrok / PulseView (open-source) |
| Operating Systems | Windows, macOS, Linux |
| Connector | 1 x 10-pin (2 x 5) 0.1 header with dupont jumper wires |
| Dimensions (approx.) | 68 x 24 x 12 mm (compact, pocket-friendly) |
| Weight (approx.) | ~15 g (analyzer body only) |
| Microcontroller Debugging | Ideal for ARM Cortex, AVR, PIC, ESP32, STM32, Arduino, Raspberry Pi Pico |
| Origin | Original / Authentic - quality-verified |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 Technical Assistance |
Key Features
- 24 MHz Maximum Sampling Rate: Captures fast digital signals with high temporal resolution - sufficient for most microcontroller buses operating up to several MHz.
- 8 Independent Channels: Monitor up to 8 digital lines simultaneously, enabling full-bus capture of SPI (CLK, MOSI, MISO, CS), I2C (SDA, SCL), UART (TX, RX), and additional GPIOs in a single acquisition session.
- Plug-and-Play USB Interface: Bus-powered via USB 2.0 - simply connect to your laptop or desktop, install free software, and start capturing. No external power adapter, batteries, or complex setup required.
- 3.3 V & 5 V Logic Compatible: Works seamlessly with both 3.3 V and 5 V microcontroller families, covering Arduino (5 V), ESP32 (3.3 V), STM32 (3.3 V), Raspberry Pi Pico (3.3 V), PIC, AVR, and more.
- Extensive Protocol Decoding: Built-in protocol analyzers in compatible software decode raw waveforms into human-readable data for UART, SPI, I2C, 1-Wire, JTAG, CAN, I2S, SDIO, Manchester encoding, and dozens of additional protocols.
- Open-Source Software Support: Fully compatible with sigrok/PulseView - a powerful, free, cross-platform logic analysis suite with continuous community-driven protocol decoder updates.
- Stream-to-PC Architecture: Capture duration is limited only by your computer's available RAM, enabling long-duration recordings for intermittent bug hunting and protocol analysis.
- Ultra-Compact & Portable: Pocket-sized form factor makes it the perfect travel companion for field debugging, on-site troubleshooting, and mobile workbench setups.
- Trigger Capabilities: Software-configurable edge triggers (rising, falling, or both) on any channel for precise event-based capture, reducing time spent scrolling through irrelevant data.
- Minimal Circuit Loading: High input impedance (>= 100 kOhm) ensures the analyzer doesn't disturb the signals on your target circuit, preserving signal integrity during measurement.
Why Choose This USB Logic Analyzer?
- 100% Authentic & Quality-Verified: Sourced directly from trusted, authorized suppliers. Every unit undergoes verification to ensure reliable, consistent performance - no counterfeit or substandard components.
- Affordable Oscilloscope Alternative: For digital signal analysis and protocol debugging, a logic analyzer provides clearer, more actionable data than an oscilloscope at a fraction of the cost.
- Essential Microcontroller
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
