Waveshare RPi IR-CUT Camera (B), Better Image in Both Day and Night
by
My Store
SKU: TES-EV00006822
25% off

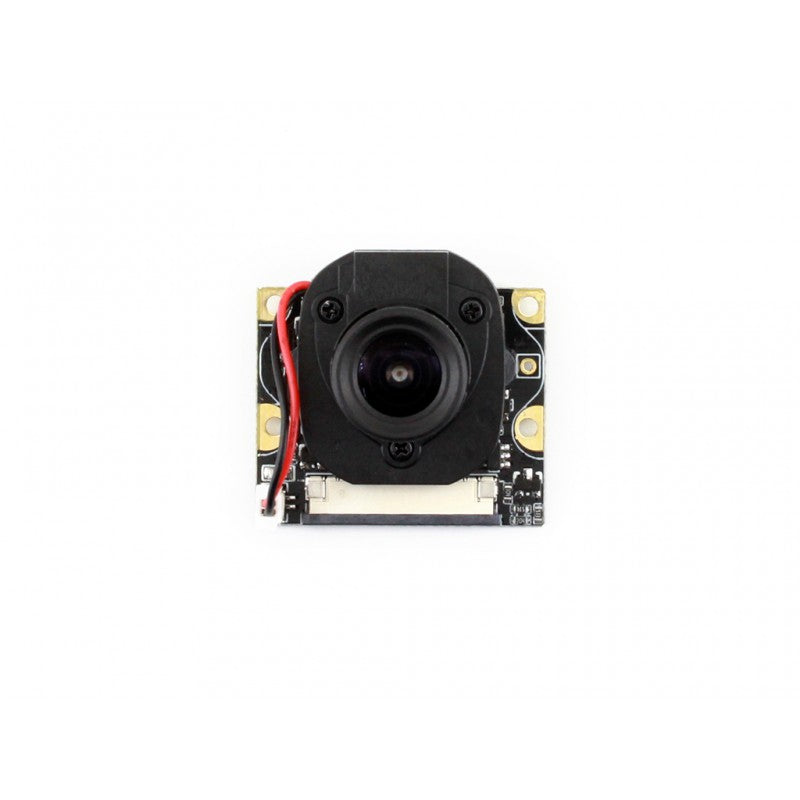

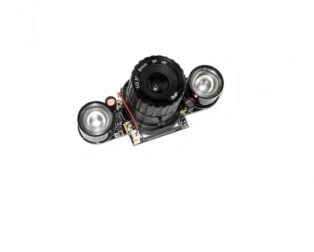

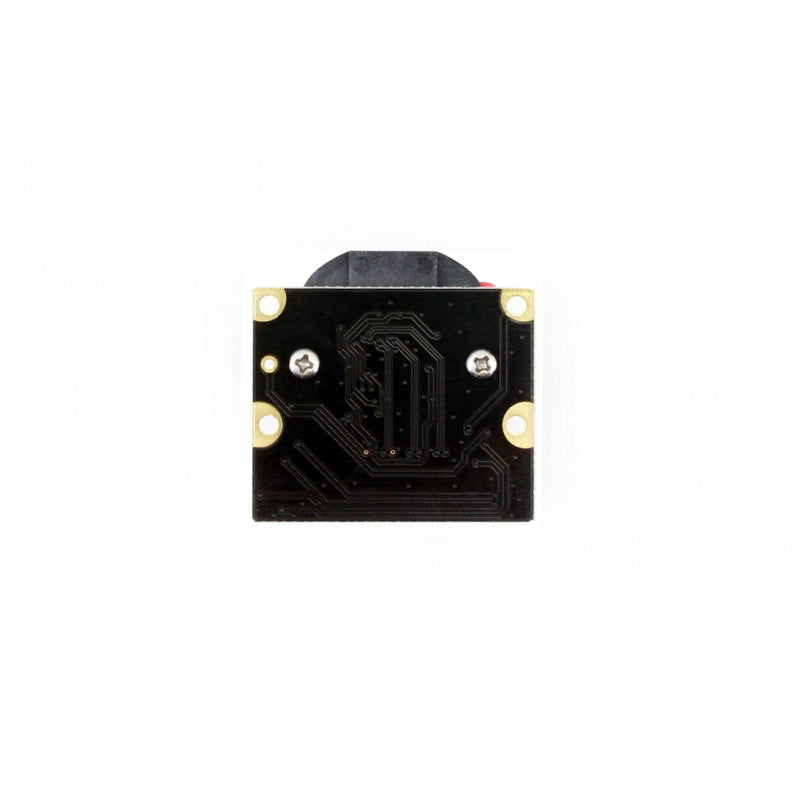

Raspberry Pi Camera Module, Embedded IR-CUT, Supports Night Vision.to test the camera you need to connect a HDMI display for previewing .The connectors of the DSI interface (display) and the CSI interface (camera) look the same, please take care of it when you connect the camera. The CSI interface is placed between the Audio jack and the HDMI port. the CSI connector of Pi zero is beside the Power interface. If you use Compute Module, please check the actual place of the carrier board.
Features:
- Raspberry Pi Camera, supports all revisions of the Pi
- Embedded removable IR-CUT filter, eliminating color distortion in the daylight
- Comes with infrared LED supports night vision
- 5 megapixel OV5647 sensor
- Adjustable focus distance
- Supports connecting infrared LED and/or fill flash LED
Package Include:
1 X RPi IR-CUT Camera
2 X Infrared LED Board
1 X 15-pin FFC (opposite sides contact)
