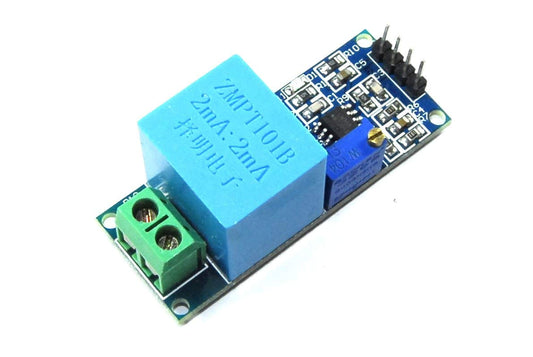

ZMPT101B AC Single Phase Voltage Sensor Transformer Module
Accurately measure AC mains voltage in your microcontroller projects with the ZMPT101B voltage sensor transformer module. Available now at The Engineer Store, Bengaluru, this compact module uses a precision micro-voltage transformer to safely step down AC line voltage to a low-level analog signal that Arduino, ESP32, and other development boards can read. Ideal for energy monitoring, power quality analysis, and smart home automation systems. Fast shipping across India with full technical support.
Specifications
| Module | ZMPT101B AC Voltage Sensor Transformer Module |
| Transformer | ZMPT101B Precision Micro Voltage Transformer |
| Input Voltage Range | Up to 250V AC (single phase) |
| Output Signal | Analog AC signal (suitable for ADC input) |
| Operating Voltage | 3.3V - 5V DC |
| Phase Shift | < 1 degrees (high accuracy) |
| Linearity | High linearity within rated range |
| Isolation | Galvanic isolation between mains and output |
| Onboard Potentiometer | Yes - for gain / sensitivity adjustment |
| Output Type | Analog voltage centered around Vcc/2 |
| Connector Pins | 4-pin header (Vcc, GND, Signal Out, NC) |
| AC Input Terminals | 2-pin screw terminal block |
| Board Dimensions | Approx. 49 x 24 mm |
| Mounting | 2 mounting holes for secure installation |
| Compatible Platforms | Arduino, ESP32, ESP8266, STM32, Raspberry Pi (with ADC), PIC |
| Origin | Original / Authentic Module |
| Warranty | 7-day warranty on manufacturing defects |
| Support | Email & WhatsApp 24/7 |
Key Features
- Safe Galvanic Isolation: The ZMPT101B transformer provides complete electrical isolation between high-voltage AC mains and your low-voltage microcontroller, ensuring safe operation during development and deployment.
- High Accuracy & Low Phase Shift: Less than 1 degrees of phase shift and excellent linearity make this module suitable for true RMS voltage measurement, power factor calculation, and real-time energy monitoring applications.
- Onboard Gain Adjustment: A multi-turn trimmer potentiometer lets you fine-tune the output amplitude to match your ADC's input range, maximizing measurement resolution without clipping.
- Wide Voltage Measurement Range: Designed to handle standard household and industrial single-phase AC voltages up to 250V AC, covering 110V and 220-240V mains systems worldwide.
- Analog Output Centered at Vcc/2: The output signal oscillates around a DC bias of approximately half the supply voltage, making it directly readable by single-supply ADCs without additional biasing circuitry.
- Compact & Breadboard-Friendly: Small PCB footprint with standard pin headers and screw terminals for easy integration into breadboard prototypes, custom PCBs, or enclosed energy monitoring systems.
- Multi-Platform Compatibility: Works seamlessly with Arduino Uno/Mega/Nano, ESP32, ESP8266, STM32 Blue Pill, Raspberry Pi Pico, and any microcontroller with an analog-to-digital converter.
Why Choose This Module?
- 100% authentic ZMPT101B modules sourced directly from trusted, authorized component suppliers
- Pre-soldered and fully tested - ready to connect and measure straight out of the box
- Extensively documented with community libraries, tutorials, and code examples available online
- 1-5 day shipping, 7-8 day delivery from our Bengaluru warehouse to most locations across India
- Expert technical support included - get help with wiring, calibration, and code integration
- Ideal companion to current sensors (ACS712/SCT-013) for complete power monitoring solutions
How It Works
The ZMPT101B module uses a miniature voltage transformer to step down AC mains voltage to a safe, low-amplitude AC signal. This signal passes through an onboard op-amp conditioning circuit that adds a DC offset of Vcc/2 (approximately 2.5V when powered at 5V), producing a clean sinusoidal waveform centered around the midpoint. You connect the analog output pin to any ADC channel on your microcontroller, sample the waveform over one or more complete cycles, and calculate the RMS voltage using software. The onboard potentiometer allows you to adjust the output amplitude so the waveform fills as much of the ADC range as possible for maximum precision. Because the transformer provides galvanic isolation, there is no direct electrical connection between the dangerous mains voltage and your microcontroller circuit.
Project Ideas
- Home Energy Monitor: Pair with an ACS712 or SCT-013 current sensor to build a complete single-phase energy meter that tracks voltage, current, power, power factor
Frequently Asked Questions
When will I receive my order?
Products ship within 1-5 days from our Bengaluru warehouse. Delivery within 7-8 days to most locations across India.
Is technical support available?
Yes, 24/7 support via email and WhatsApp for setup, troubleshooting, and application guidance.
What is your return policy?
7-day returns on manufacturing defects only. Full refund or replacement. Not applicable for user damage or misuse.
Are bulk discounts available?
Yes, wholesale pricing on orders of 10+ units. Contact us via WhatsApp or email for a custom quote.
Buy ZMPT101B AC Single Phase Voltage Sensor Transformer Module Online in India
Purchase the ZMPT101B AC Single Phase Voltage Sensor Transformer Module online at The Engineer Store - India's most trusted electronics components store. We deliver across all major cities including Bengaluru, Mumbai, Delhi, Chennai, Hyderabad, Pune, Kolkata, Ahmedabad, Jaipur, and Surat. Get the best price on ZMPT101B AC Single Phase Voltage Sensor Transformer Module with fast 1-5 day shipping from our Bengaluru warehouse. All products are 100% authentic, sourced from authorized distributors with 7-day warranty on manufacturing defects.
Looking to buy ZMPT101B AC Single Phase Voltage Sensor Transformer Module at the best price in India? The Engineer Store offers competitive pricing, bulk discounts for orders of 10+ units, and dedicated technical support via email and WhatsApp. Whether you are a hobbyist, student, or professional engineer, we have everything you need for your electronics projects.
