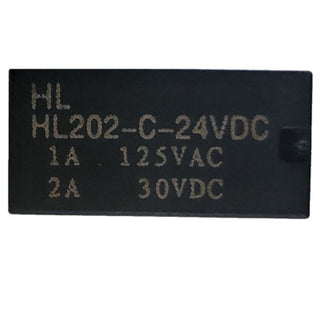

24V 1A DPDT Relay PCB Mount

by My Store
SKU: TES-EV8102983
Rs. 544.00 Rs. 44.00 92% off
No Reviews
24V 1A DPDT Relay PCB Mount
24V 1A DPDT Relay PCB Mount

24V 1A DPDT Relay PCB Mount

The TX2-24V is a Signal Relay with DC coil. This TX-series signal relay has 2CO (DPDT) Au-clad Ag alloy contacts. Best seller with broad line-up and AC 2000V breakdown voltage. Standard PC board terminal. The body block construction of the coil that is sealed at formation offers a high breakdown voltage of 2000V between contact and coil and 1000V between open contacts.

Specifications:

  1. Coil Resistance: 4.114kohm
  2. Coil Type: Non Latching
  3. Contact Current: 2A
  4. Coil Voltage: 24VDC
  5. Contact Voltage VDC: 30V
  6. Contact Material: Silver
  7. Product Range: TX
  8. Relay Mounting: Through Hole
  9. Contact Configuration: DPDT
  10. Relay Terminals: Solder
Sale

24V 1A DPDT Relay PCB Mount

by My Store
SKU: TES-EV8102983
Rs. 544.00 Rs. 44.00 92% off
No Reviews
3-5 Working Days Dispatch
(0 in cart)
Shipping calculated at checkout.

You may also like

24V 1A DPDT Relay PCB Mount

The TX2-24V is a Signal Relay with DC coil. This TX-series signal relay has 2CO (DPDT) Au-clad Ag alloy contacts. Best seller with broad line-up and AC 2000V breakdown voltage. Standard PC board terminal. The body block construction of the coil that is sealed at formation offers a high breakdown voltage of 2000V between contact and coil and 1000V between open contacts.

Specifications:

  1. Coil Resistance: 4.114kohm
  2. Coil Type: Non Latching
  3. Contact Current: 2A
  4. Coil Voltage: 24VDC
  5. Contact Voltage VDC: 30V
  6. Contact Material: Silver
  7. Product Range: TX
  8. Relay Mounting: Through Hole
  9. Contact Configuration: DPDT
  10. Relay Terminals: Solder
